10 Bar Brass Angle Valves for Washing Machine with High Precision Machining and Ergonomic Design
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | DOUBLE-LIN |
| Πιστοποίηση: | ACS,EAC |
| Αριθμό μοντέλου: | LL3028 |
Πληρωμής & Αποστολής Όροι:
| Minimum Order Quantity: | 0 |
|---|---|
| Τιμή: | 0 |
| Συσκευασία λεπτομέρειες: | Τυπική συσκευασία Double-Lin |
| Χρόνος παράδοσης: | Εντός 7 ημερών |
| Όροι πληρωμής: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Δυνατότητα προσφοράς: | 50000 PCS |
|
Λεπτομερής ενημέρωση |
|||
| Άρθρο: | βαλβίδα σφαιρών γωνίας ορείχαλκου | Μέγεθος: | 9/16"*1/2"*9/16" |
|---|---|---|---|
| Υλικό από χαλκό: | HPB 57-3 | Χειρισμός υλικού: | Άλλες χημικές ουσίες |
| Τύπος χειριστή: | Τύπος τριγώνου | Υλικό στέλεχος: | χάλκινο |
| Υλικό καθίσματος: | Εθνική Εθνική Εταιρεία | Εργασιακή πίεση: | 10 φραγμός (145 PSI) |
| Δήμος: | ISO228 (ισοδύναμο με το DIN 259 και το BS2779) | Θερμοκρασία εργασίας: | από 0 °C έως +80 °C (από 32°F έως 176°F) |
Περιγραφή προϊόντων

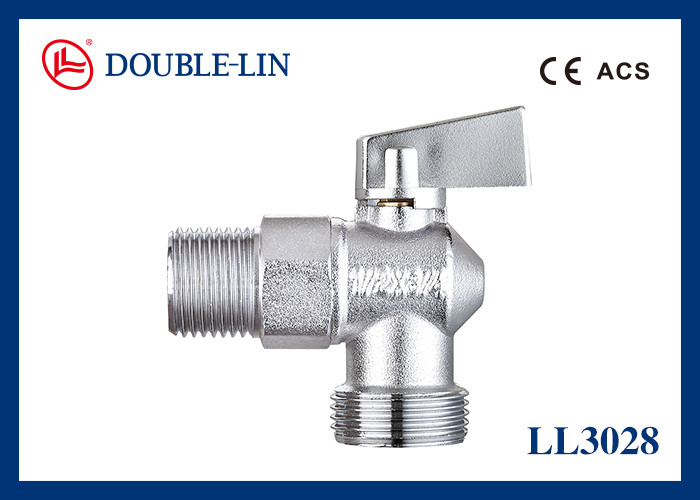

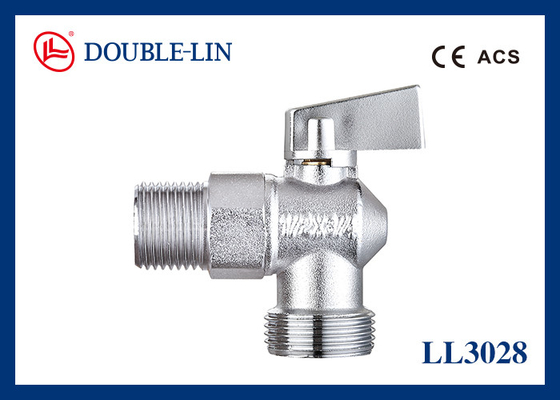

10 Bar Brass Angle Ball Valve For Washing Machine/Chrome Plated
- Description
Working Pressure 10bar (145 psi)
Working Temperature from 0 ℃ to +80 ℃ (from 32℉ to 176℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
- Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Surface: Professionally polished and chrome plated, with nine-level electroplating standards. The surface is as smooth as a mirror, and can be used for long time.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Internal: High-precision machining, smooth and non-scalling, is not easy to block, and make the service life longer.
Handle: Made by zinc alloy is exquisite in appearance and unique in structure, which conforms to the human body ergonomics and is long time to use.
Water Inlet: High-precision thread processing, perfect docking with water inlet pipe, silky smooth.
Cover: Made of stainless steel, antirust, long-term use of the suface is still as new.
Materials of Parts
| No. | Part | Materials |
| 1 | Body | Brass |
| 2 |
Bonnet |
Brass |
| 3 | Stem | Brass |
| 4 | Seal | Brass |
| 5 | Seal Gasket | NBR |
| 6 | O ring | NBR |
| 7 | Connector | Plastic |
| 8 | Handle Wheel | Zinc Alloy |
| 9 | Cover | Stainless Steel 304 |
- certificate for LL3028
- Company Profiles
Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.
- Our Package Details
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.
- FAQ
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
